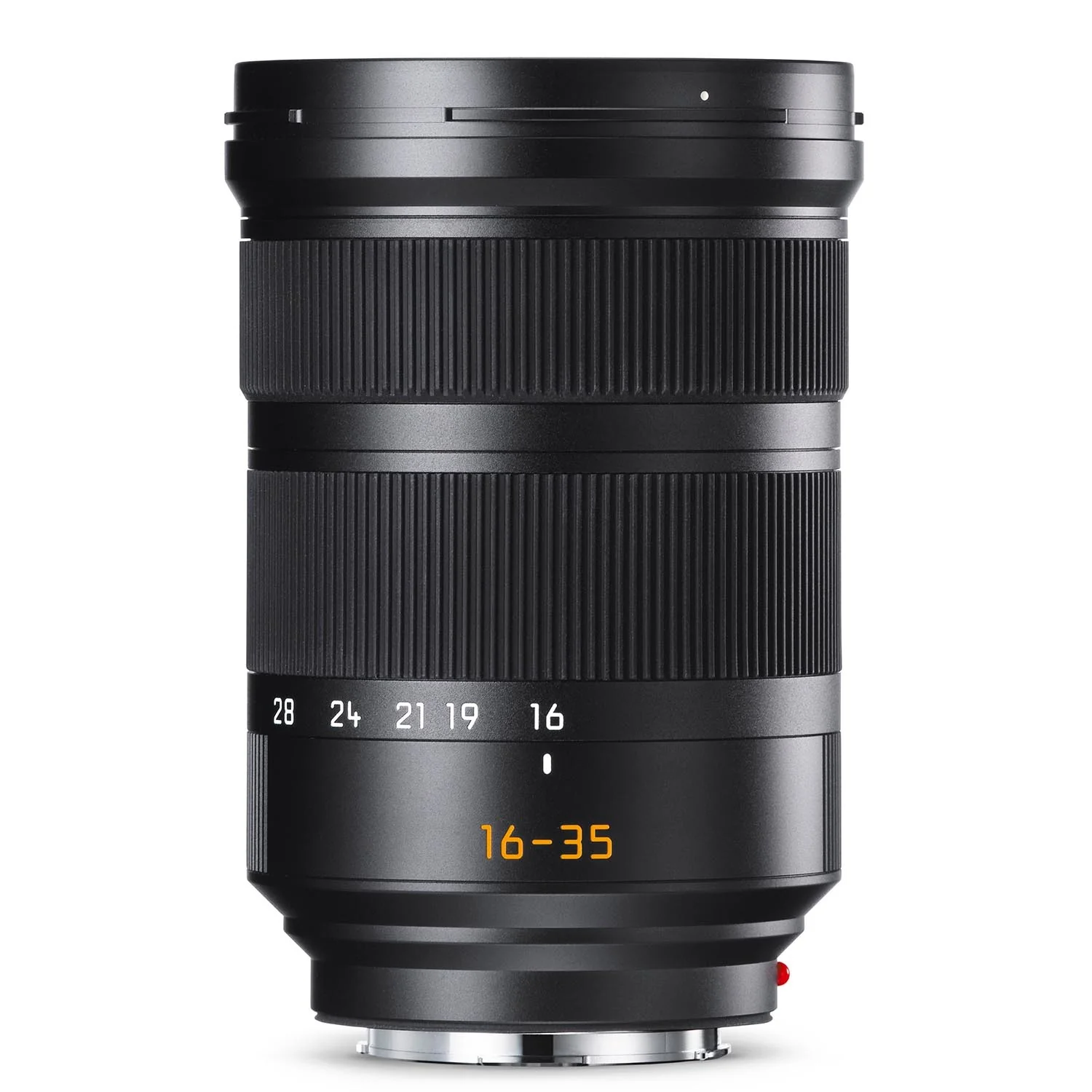

Leica SL 16-35mm f3.5-4.5 Super-Vario-Elmar-SL

Group portraits, landscapes, and architecture: Whenever the scene demands a wider view, the Leica Super-Vario-Elmar-SL 16–35 f/3.5–4.5 ASPH. is the perfect wide-angle lens for capturing it all. With a range of focal lengths from 16 to 35 mm, this high-performance lens expands the spectrum of the existing portfolio of SL zoom lenses into the super wide-angle range.


Endless opportunities from 16-280 mm

With the Super-Vario-Elmar-SL 16–35 f/3.5–4.5 ASPH, the Vario-Elmarit-SL 24–90 f/2.8–4 ASPH., and the APO-Vario-Elmarit-SL 90–280 f/2.8–4 ASPH., the SL portfolio of zoom lenses covers a range of focal lengths from 16 to 280 mm. Thus the three zoom lenses offer a spectrum of focal lengths that fulfill the needs of all styles of photography.

Fast and sharp when it matters

Together with exceptional imaging performance expected from a Leica at all focus distances and apertures, the high-performance lens offers simultaneously fast and nearly silent autofocus. To achieve this, only one very lightweight lens element is moved for focusing. A specially developed focus drive comprising a stepping motor and linear positioning enables very fast, almost-silent, and precise focusing without changing the overall length of the lens barrel.

Reliable under all conditions

As is the case with all other components of the Leica SL-System, the Super-Vario-Elmar-SL 16–35 f/3.5–4.5 ASPH. is designed and constructed to meet the special demands of professional photography. Made in Germany, the rugged construction of this lens and its AquaDura® lens coating make it ideal for use in even the most difficult conditions. Improved high-quality coatings ensure optimum suppression of reflections and stray light within the optical system, for shooting in even the harshest lighting.




Product Specifications:


Order number 11 177

Field angle (diagonal, horizontal, vertical) Focal length 16mm: 105,6°/95,3°/72°
Focal length 24mm: 84,7°/74,4°/53,7°
Focal length 35mm: 64,6°/55,5°/38,7°


Optical design


Number of lenses/groups
18/12

Number of aspherical lenses 2

Entrance pupil position Focal length 16mm: 105.9mm
Focal length 24mm: 101.5mm
Focal length 35mm: 105.0mm

Distance setting

Working range 250mm to infinity

Smallest object field Focal length 35mm: 90 x 135 mm

Largest reproduction ratio Focal length 16mm: 1:7.7
Focal length 35mm: 1:3.7


Aperture


Setting/function
Electronically controlled aperture, set using turn/push wheel on camera, including half and third values



Aperture setting range
Focal length 16mm: 3.5-22
Focal length 35mm: 4.5-22

Lowest value 22

Lens mount/sensor format L-Mount, full-frame 35mm format

Filter mount E82

Dimensions and weight


Length to bayonet mount
123 mm (without lens hood)

Largest diameter
88 mm

Weight 990 g
